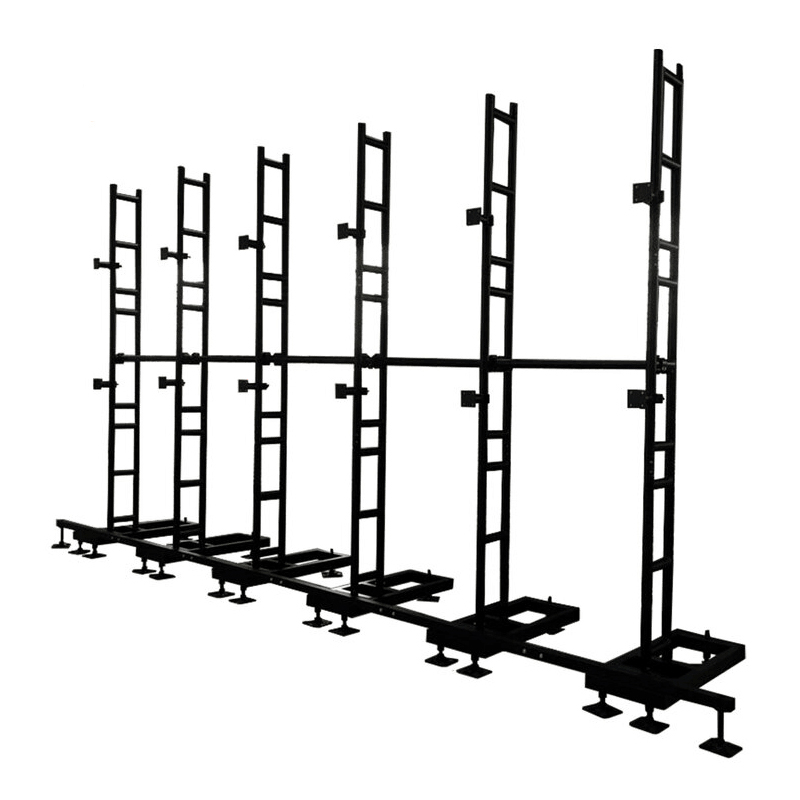

5×2m Iron Led Wall Ground Support

An Iron LED Wall Ground Support is a robust structure designed to securely hold LED cabinets. Constructed from premium iron, it provides exceptional durability and stability. Compared to LED Wall Ground Support, it is a more cost-effective solution. Ideal for both indoor and outdoor applications, it is user-friendly, quick to assemble, and built to handle demanding stage or display environments with ease.

Quantity :

add to cart

Contact Now

Introduction:

Iron LED wall ground support is a type of LED screen bracket designed for mounting LED cabinets. Iron LED wall ground support features a robust iron structure that ensures stability and durability, allowing the LED screens to be securely installed in various environments, including commercial spaces, exhibitions, and events.

•Material: Made of premium iron.

•Color: Black

•Common Installation Sizes: 3x2m, 4x3m, 5x3m, 6x4m, etc.

•Compatible Cabinet Sizes: 500x500mm, 500x1000mm, 640x640mm, 640x480mm, and 960x960mm.

•Applications: Iron LED wall ground support is Ideal for conference rooms, events, concerts, exhibitions, etc.

Specifications:

This Iron LED Wall Gground Support offers a 5-meter span and 2-meter height, designed in a straight configuration. It accommodates 500x500 mm cabinets and features a screw-lock system.

• We also offer customized Iron LED Wall Ground Support solutions in various sizes to meet unique requirements.

Components：

Adjustable Base：

The adjustable base enhances support and prevents Iron LED Wall Ground Support from tipping, and it is suitable for all kinds of surfaces.

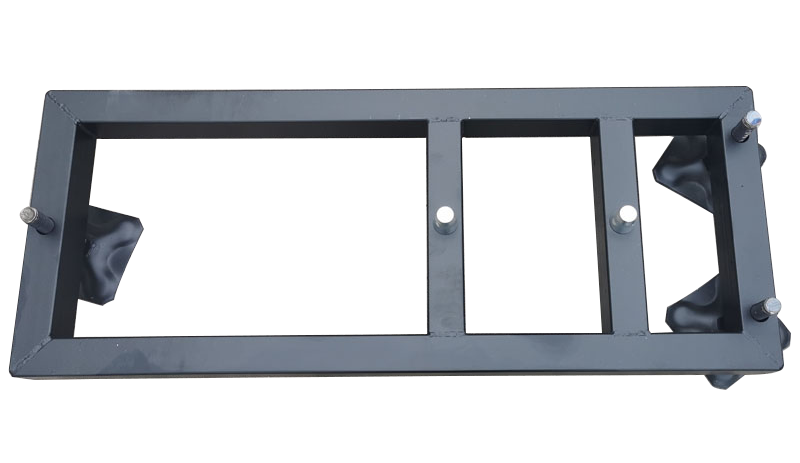

Ground Beam:

It connects to the base to ensure the whole Iron LED Wall Ground Support's stability. The pitch of hole and positioning pin locations can be customized based on the cabinets' requirements.

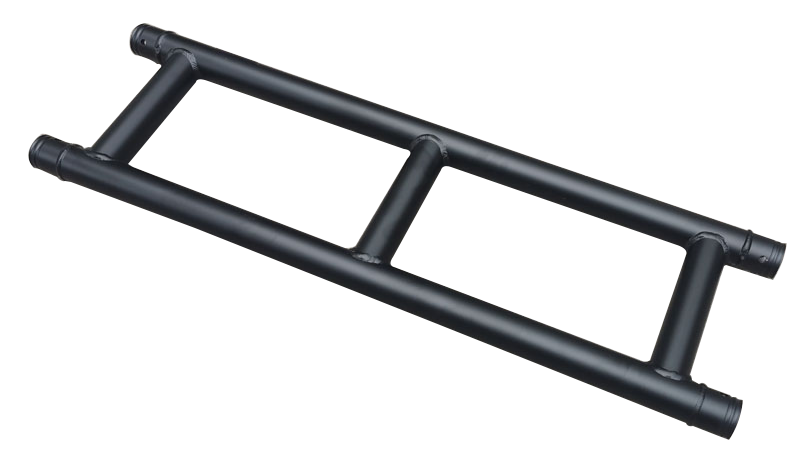

Ladder Truss:

It features a sturdy and durable structural design, ensuring the stability of the overall Iron LED Wall Ground Support's structure.

Horizontal Pipe:

It connects the ladder truss and support the Iron LED Wall Ground Support. The conventional length is 1m.

Quick Lock:

The main function of it is to ensures secure locking of the Iron LED Wall Ground Support in place for safety and reliability.

Screw Lock:

It is compatible with a wide range of cabinet's types and is more affordable compared to quick lock.

Footboard:

A stable platform is provided for standing, ensuring safety for operators working at higher place.

Weight:

Each weight is 25kg. It places on the adjustable base to increase the stability of the Iron LED Wall Ground Support and ensure that it will not collapse.
