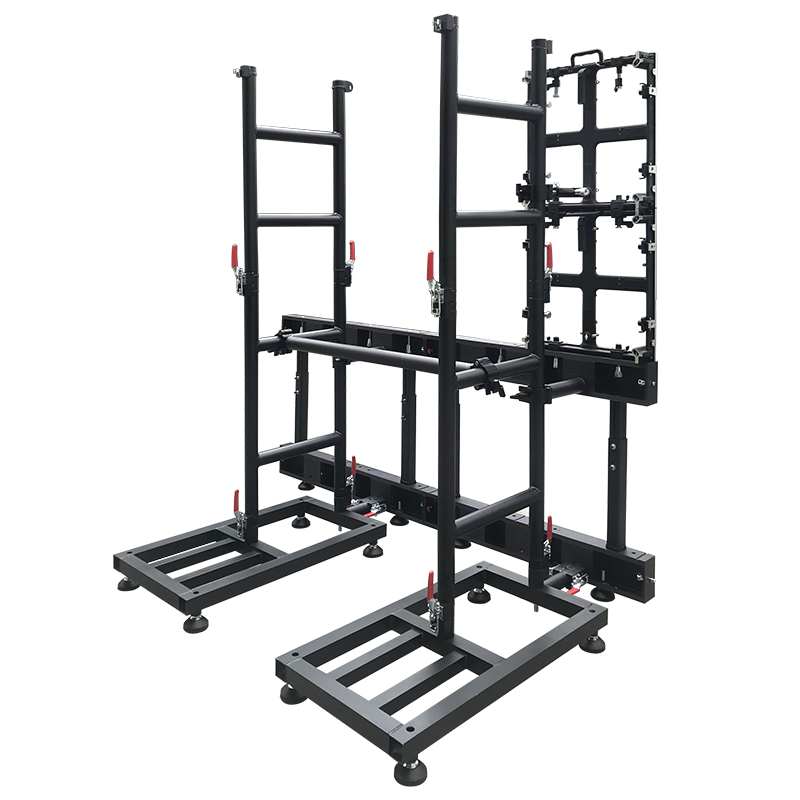

5×4m Off-ground LED Wall Support

An Off-ground LED Wall Support is a robust and versatile aluminum structure engineered for mounting LED displays. Ideal for use in events, exhibitions, conferences, and live performances. This frame offers stable support for screens in a secure, vertical position. Its modular design allows flexibility in screen size and configuration, accommodating various display needs.

Quantity :

add to cart

Contact Now

Introduction:

Off-ground LED Wall Support is an innovative and versatile support device designed for various screen types. Off-ground LED Wall Support's sturdy construction and adjustable features make it ideal for both professional and personal use. Off-ground LED Wall Support comprises several key components, ensuring stability and ease of use.

•Material: Made of aluminum alloy 6061-T6.

•Color: Black

•Common Installation Sizes: 3x2m, 4x3m, 5x3m, 6x4m, etc.

•Compatible Cabinet Sizes: 500x500mm, 500x1000mm, 640x640mm, 640x480mm, and 960x960mm.

•Applications: LED wall ground support is Ideal for conference rooms, events, concerts, exhibitions, etc.

Specifications:

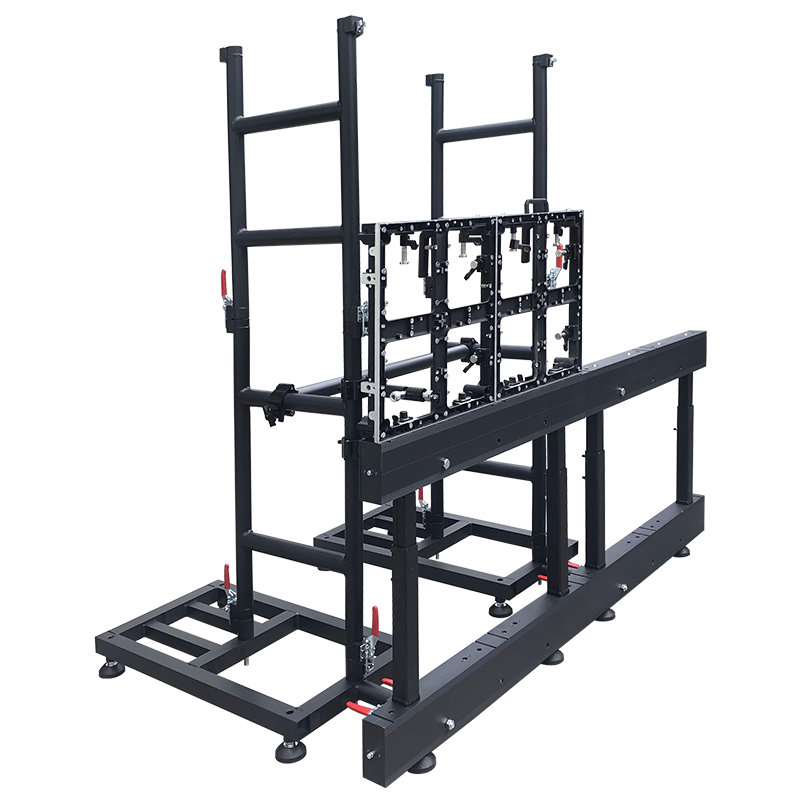

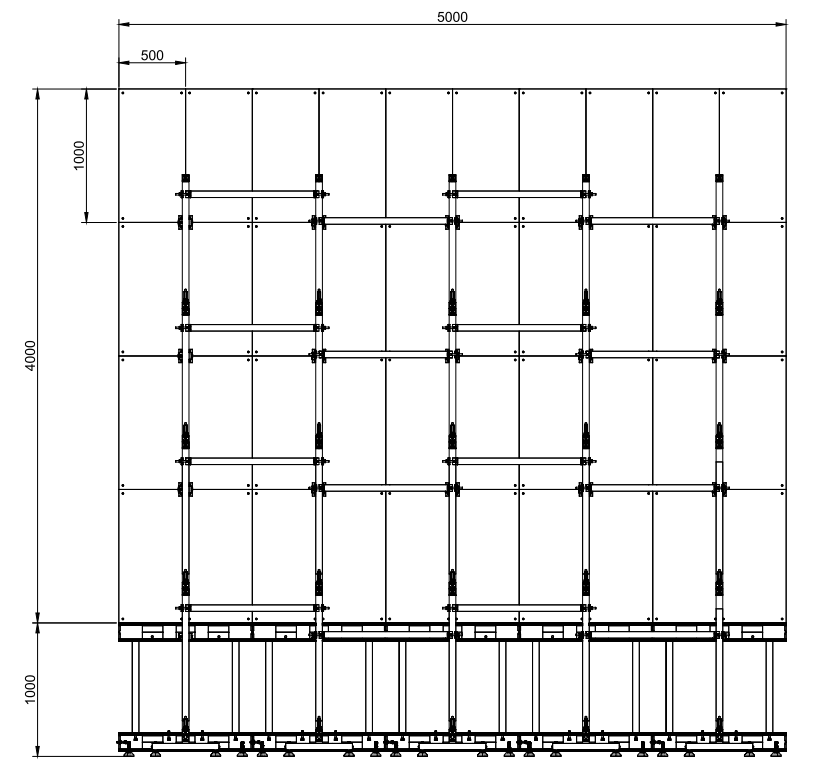

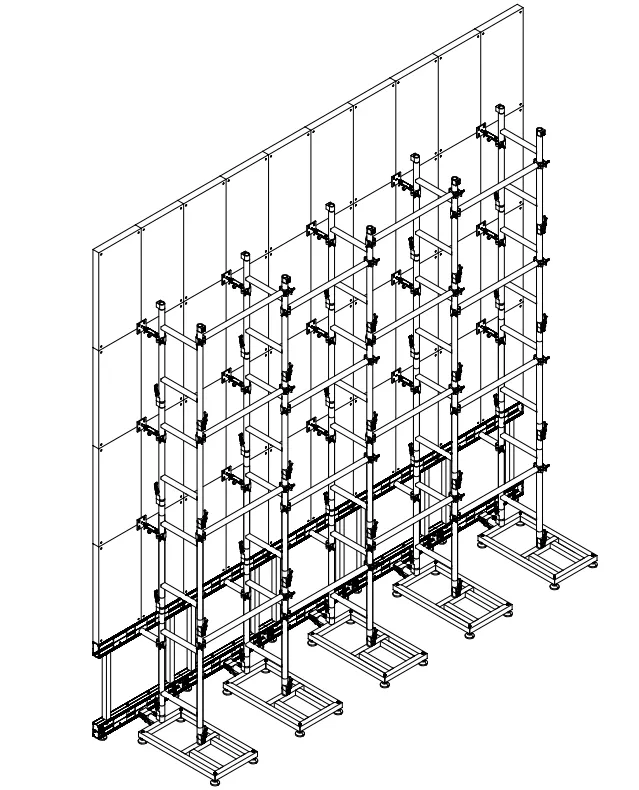

This Off-ground LED Wall Support offers a 5-meter span, 4-meter height and 1-meter off ground, designed in a straight configuration. It accommodates 500x1000 mm cabinets and features a screw-lock system.

• We also offer customized LED Wall Ground Support/Off-ground LED Wall Support solutions in various sizes to meet unique requirements.

Components：

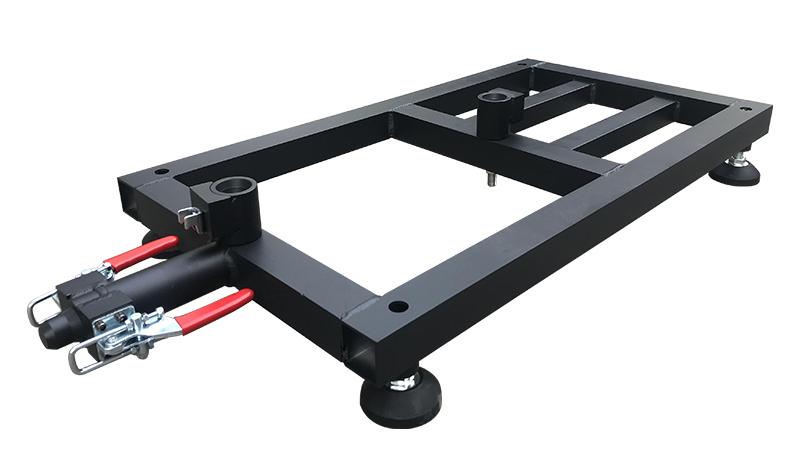

Adjustable Base：

The adjustable base enhances support and prevents Off-ground LED Wall Support from tipping, and it is suitable for all kinds of surfaces.

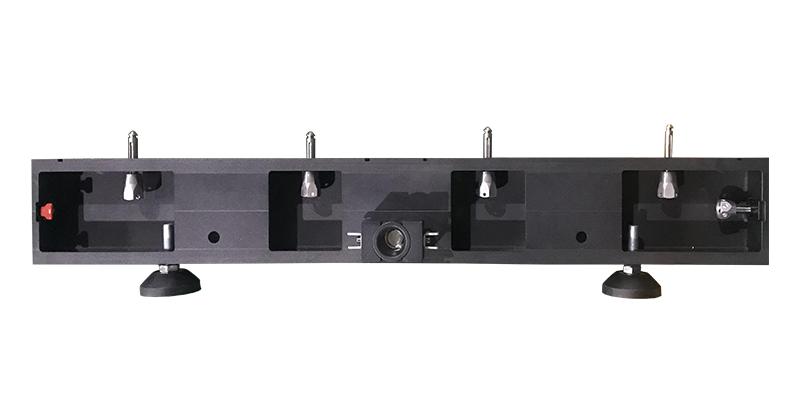

Ground Beam:

It connects to the base to ensure the whole Off-ground LED Wall Support's stability. The pitch of hole and positioning pin location can be customized based on the cabinets'requirement.

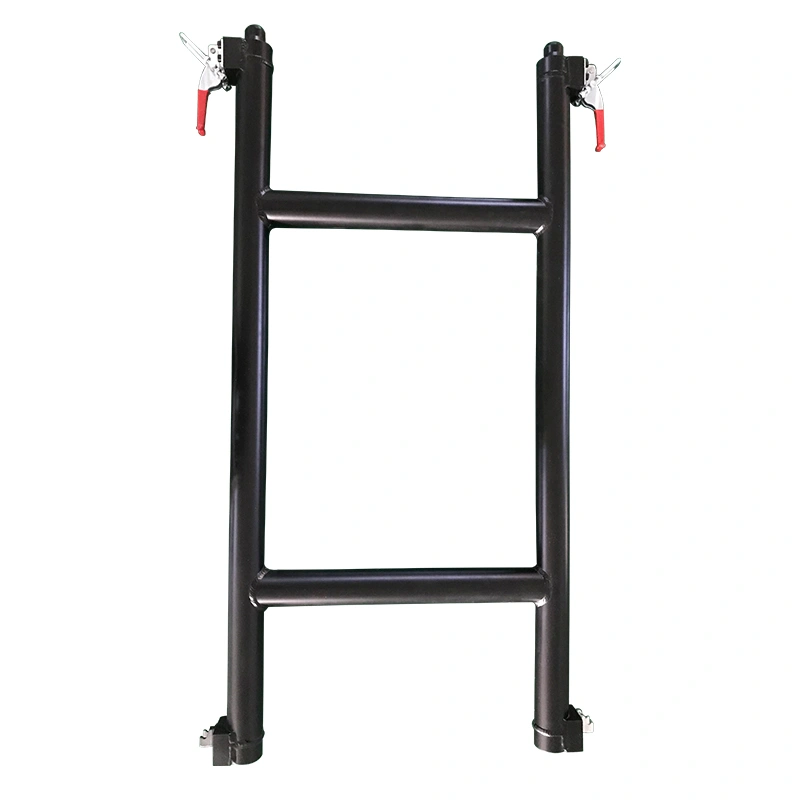

Ladder Truss:

It features a sturdy and durable structural design, ensuring the stability of the overall Off-ground LED Wall Support's structure.

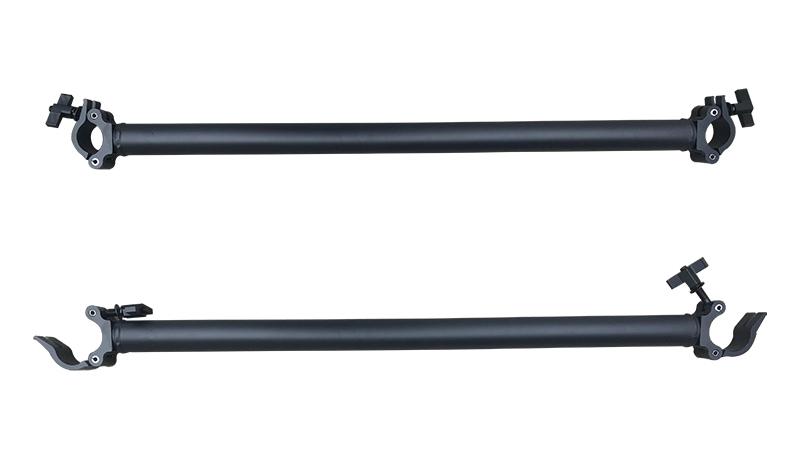

Horizontal Pipe:

It connects the ladder truss and support the Off-ground LED Wall Support. The conventional length is 1m.

Quick Lock:

The main function of it is to ensures secure locking of the Off-ground LED Wall Support in place for safety and reliability.

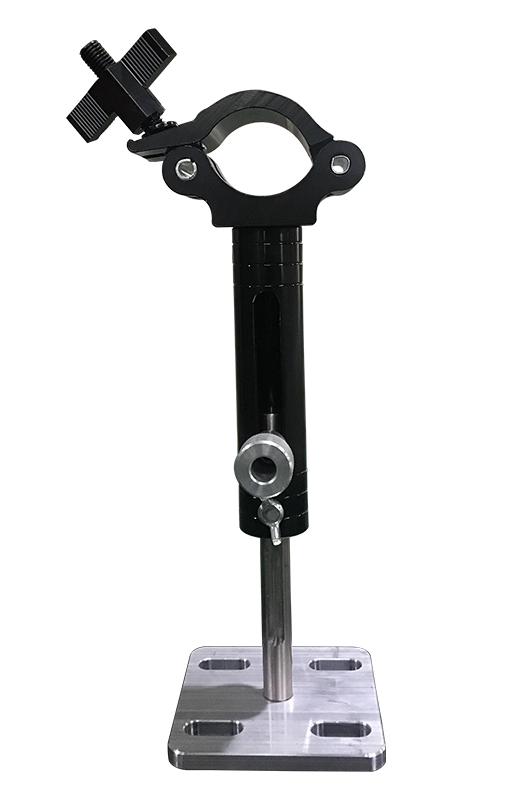

Screw Lock:

It is compatible with a wide range of cabinet's types and is more affordable compared to quick lock.

Ground Beam Connector:

A ground beam connector links the second level of the ground beam to ladder truss which can ensure the structural stability.

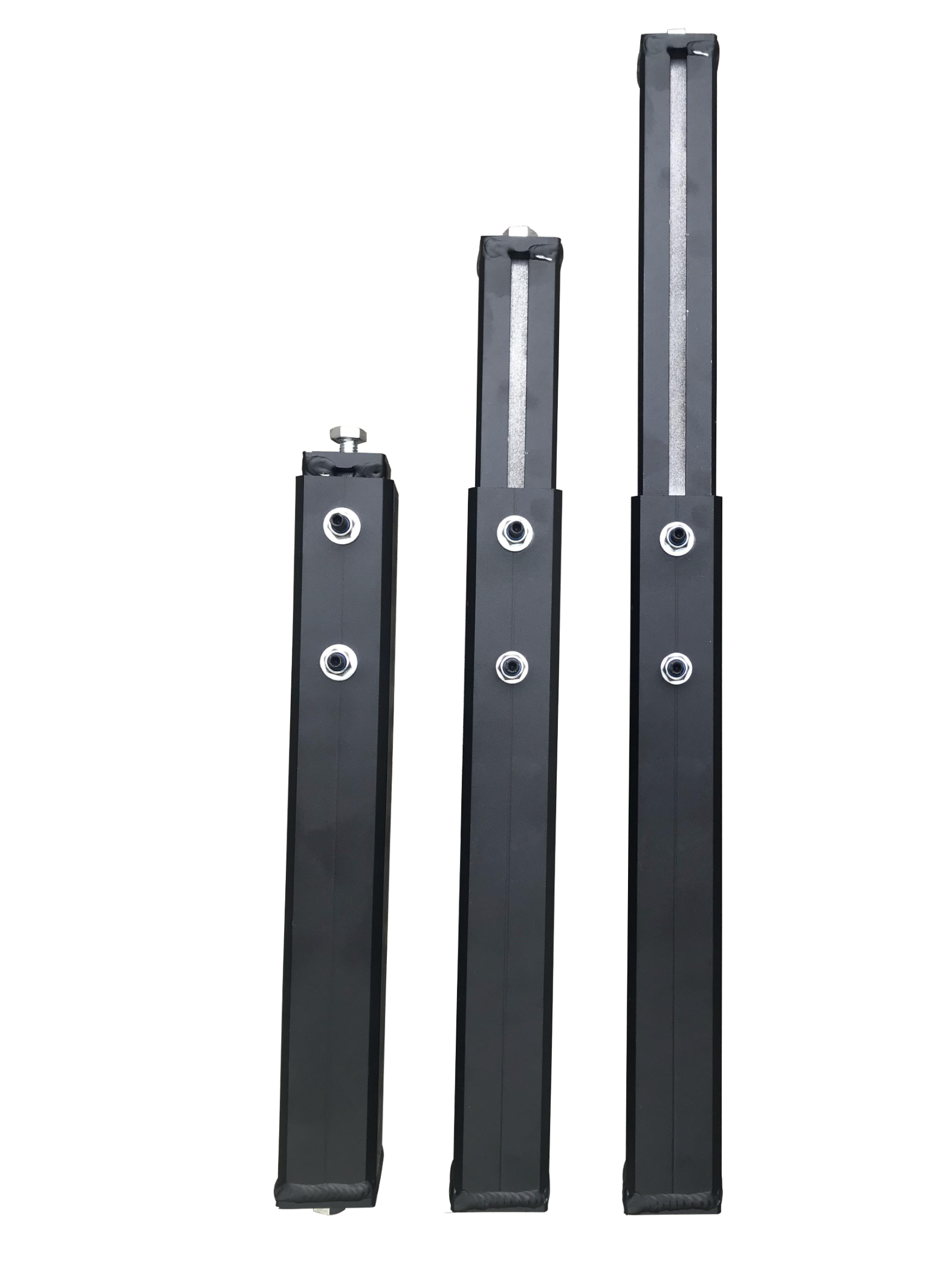

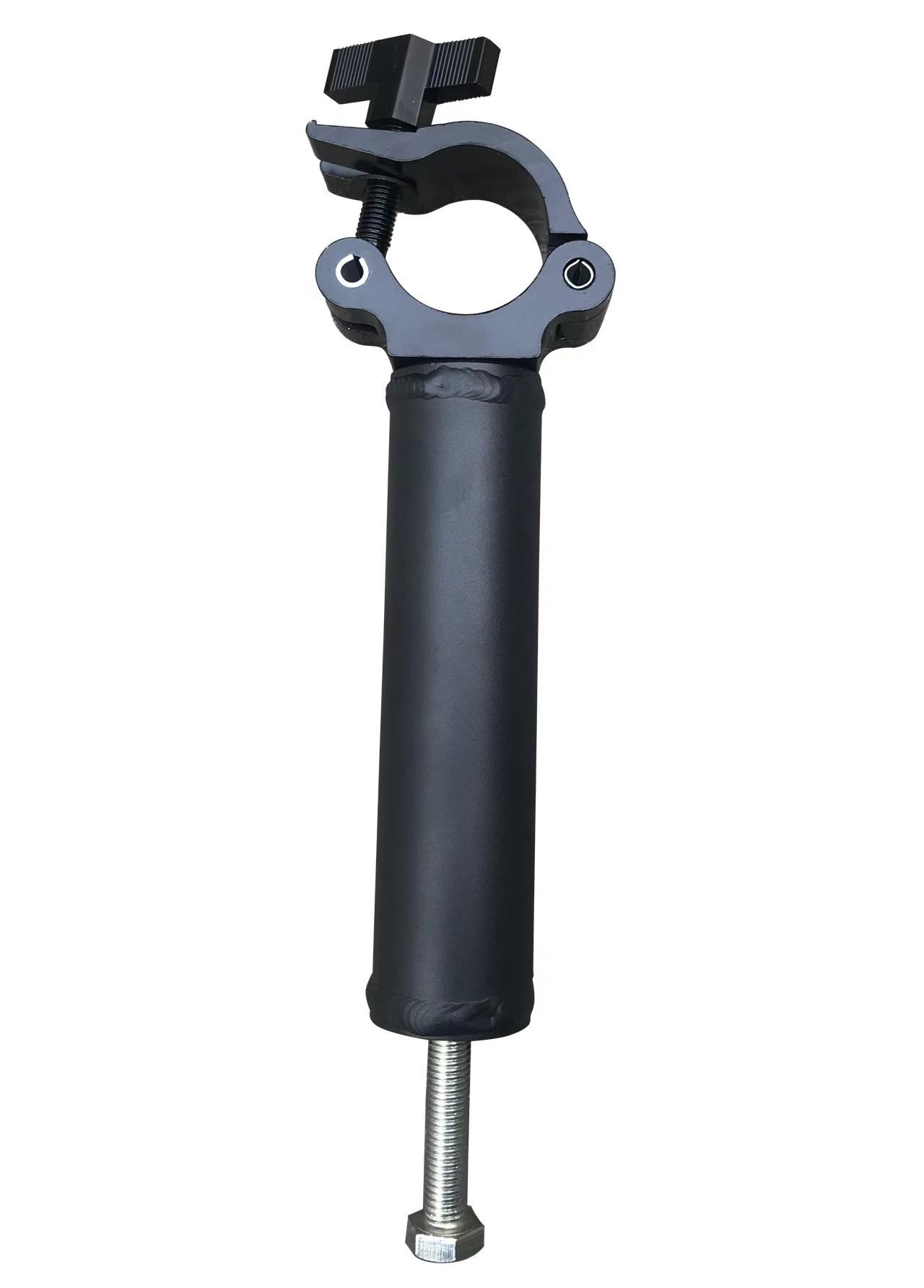

Llifting Rod:

The lifting rod of the Off-ground Curved LED Wall Ground Support ensures smooth and stable height adjustments with a robust design. It offers reliable performance, supporting substantial loads while maintaining durability.

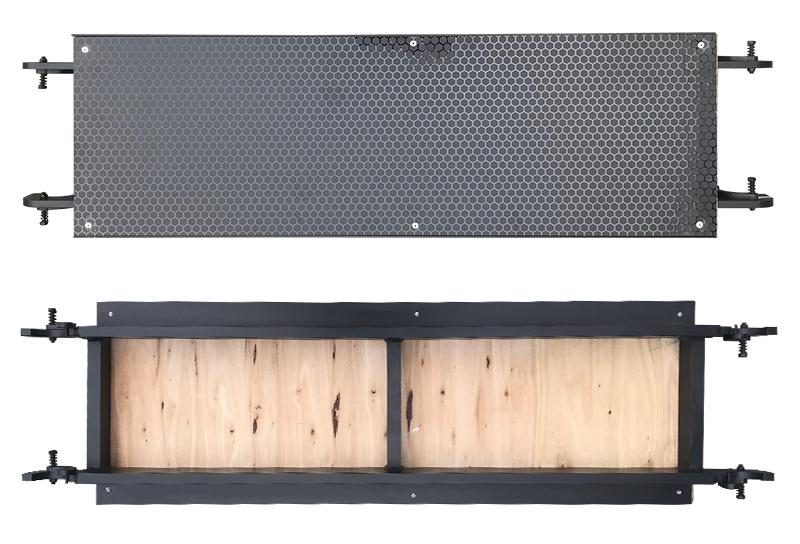

Footboard:

A stable platform is provided for standing, ensuring safety for operators working at higher place.

Weight:

Each weight is 25kg. It places on the adjustable base to increase the stability of the Off-ground LED Wall Support and ensure that it will not collapse.
