Model No: S6-H3

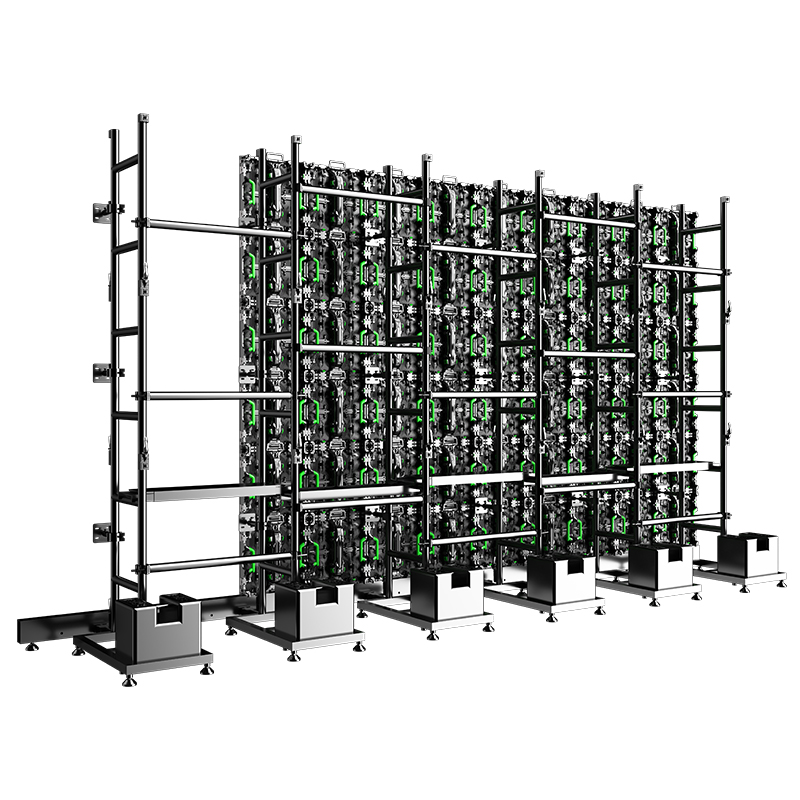

6×3m Straight Led Wall Ground Support

A LED Wall Ground Support, also known as a L-wall, is a durable and reliable aluminum structure designed specifically for mounting LED screens. Commonly used in events, trade shows, concerts, and exhibitions, this frame offers stable support for screens in a secure, vertical position. Its modular design allows flexibility in screen size and configuration, accommodating various display needs.
Quantity :
add to cart
Contact Now

Introduction:


LED wall ground support is an innovative and versatile support device designed for various screen types. LED Wall Ground Support's sturdy construction and adjustable features make it ideal for both professional and personal use. LED Wall Ground Support comprises several key components, ensuring stability and ease of use.

•Material: Made of aluminum alloy 6061-T6.

•Color: Black

•Common Installation Sizes: 3x2m, 4x3m, 5x3m, 6x4m, etc.

•Compatible Cabinet Sizes: 500x500mm, 500x1000mm, 640x640mm, 640x480mm, and 960x960mm.

•Applications: LED wall ground support is ideal for conference rooms, events, concerts, exhibitions, etc.




Specifications:

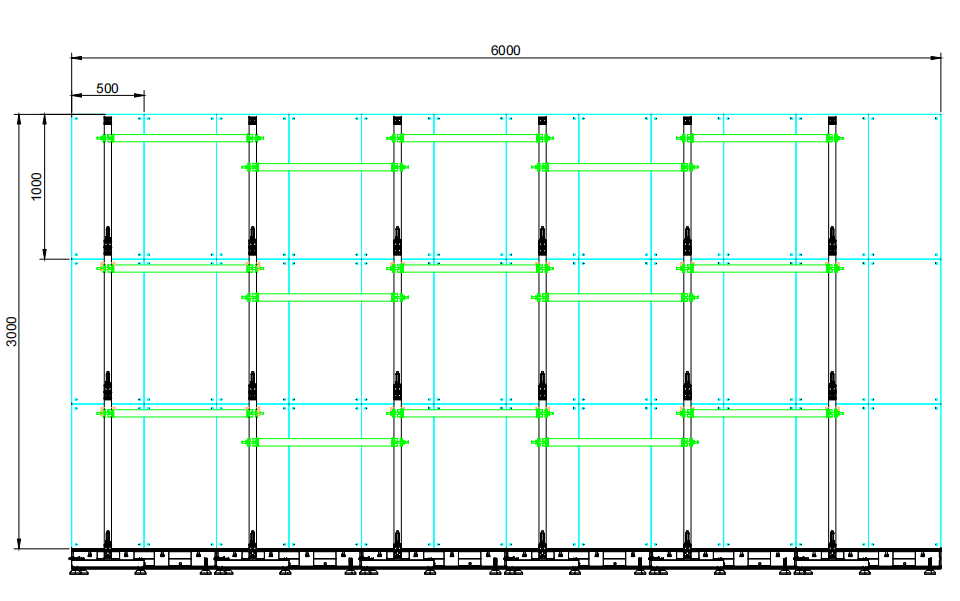

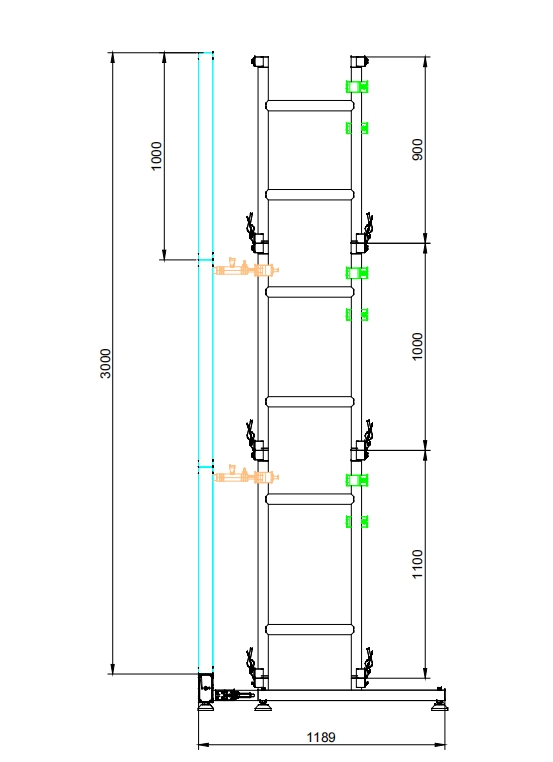

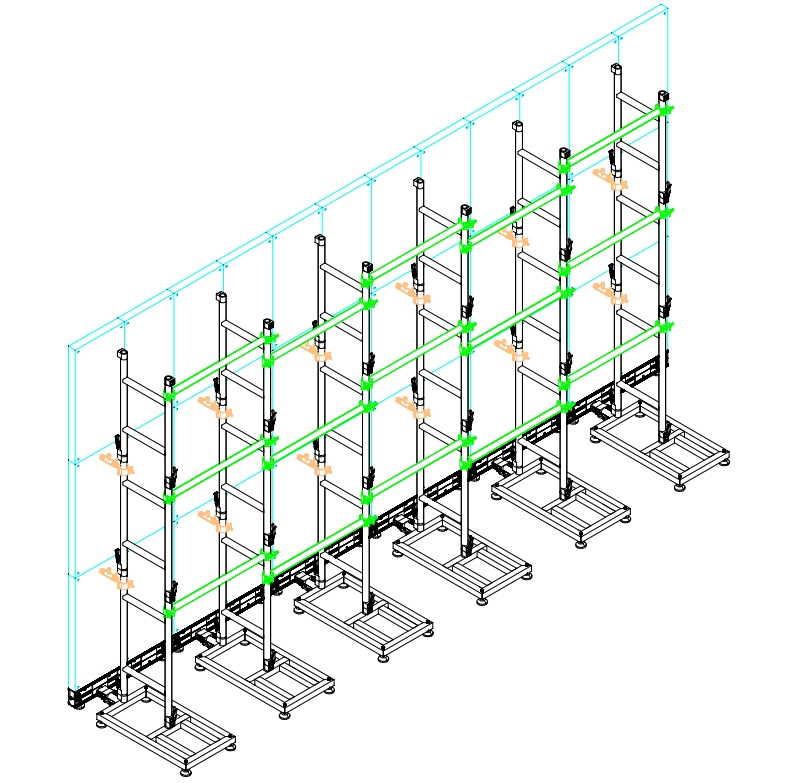

This LED Wall Gground Support offers a 6-meter span and 3-meter height, designed in a straight configuration. It accommodates 500x1000 mm cabinets and features a quick-lock system.

• We also offer customized LED Wall Ground Support solutions in various sizes to meet unique requirements.




Components：

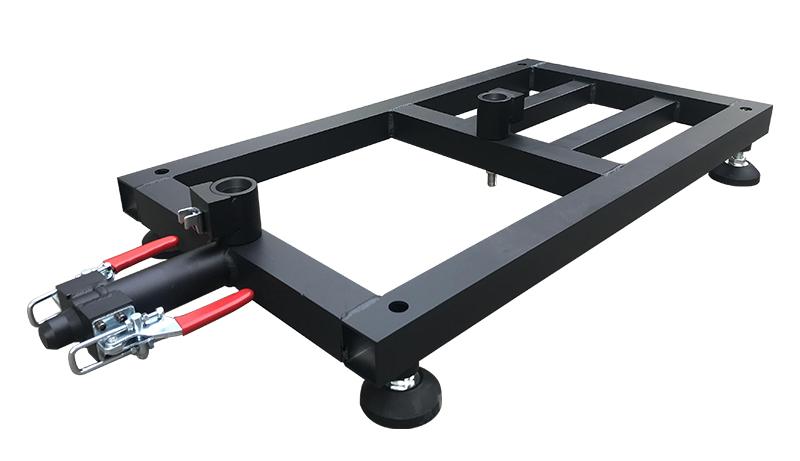

Adjustable Base：

The adjustable base enhances support and prevents LED Wall Ground Support from tipping, and it is suitable for all kinds of surfaces.

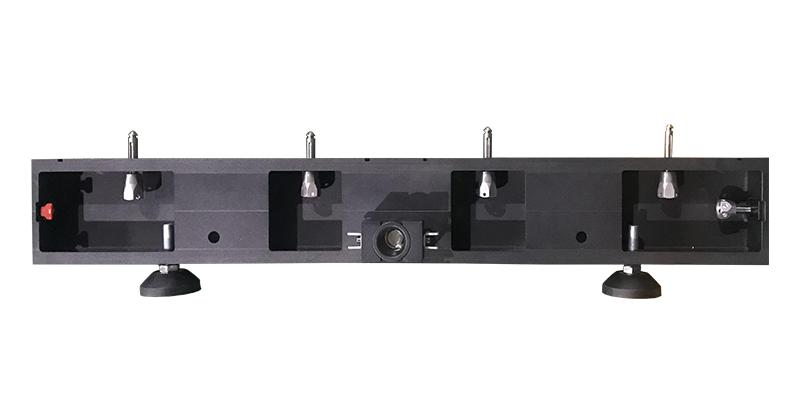

Ground Beam:

It connects to the base to ensure the whole LED Wall Ground Support's stability. The pitch of hole and positioning pin locations can be customized based on the cabinets' requirements.

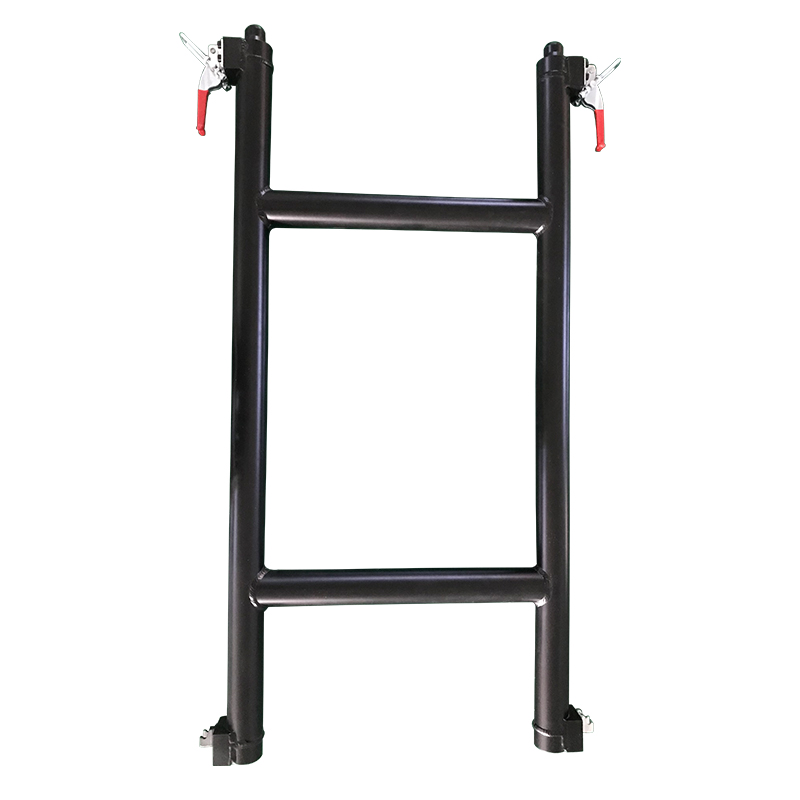

Ladder Truss:

It features a sturdy and durable structural design, ensuring the stability of the overall LED Wall Ground Support's structure.

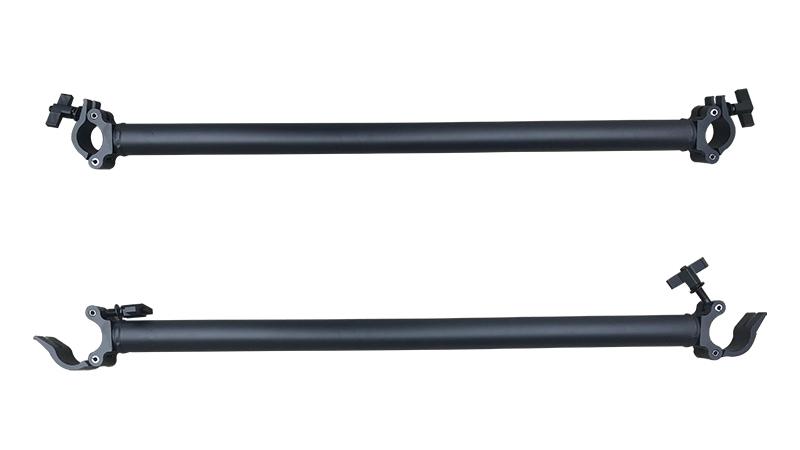

Horizontal Pipe:

It connects the ladder truss and support the LED Wall Ground Support. The conventional length is 1m.

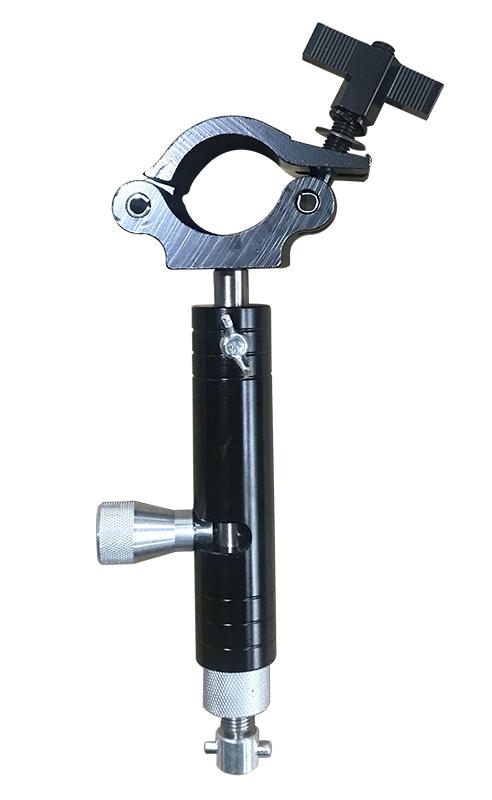

Quick Lock:

The main function of it is to ensures secure locking of the LED Wall Ground Support in place for safety and reliability.

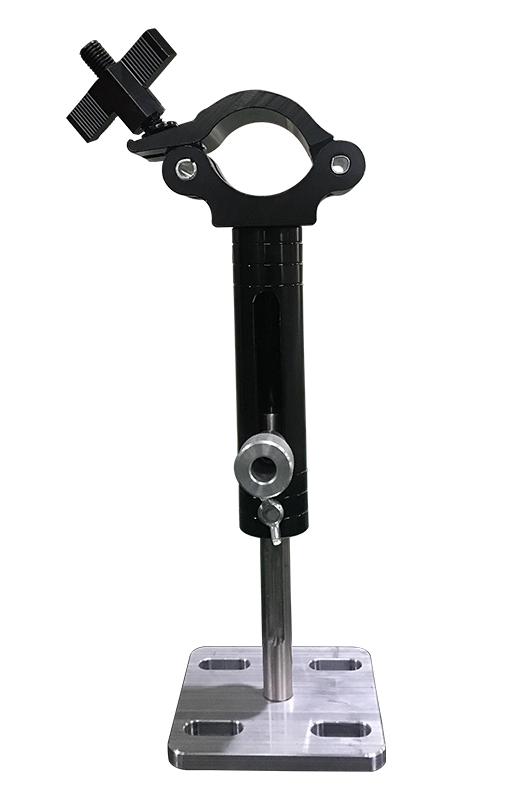

Screw Lock:

It is compatible with a wide range of cabinet's  types and is more affordable compared to quick lock.

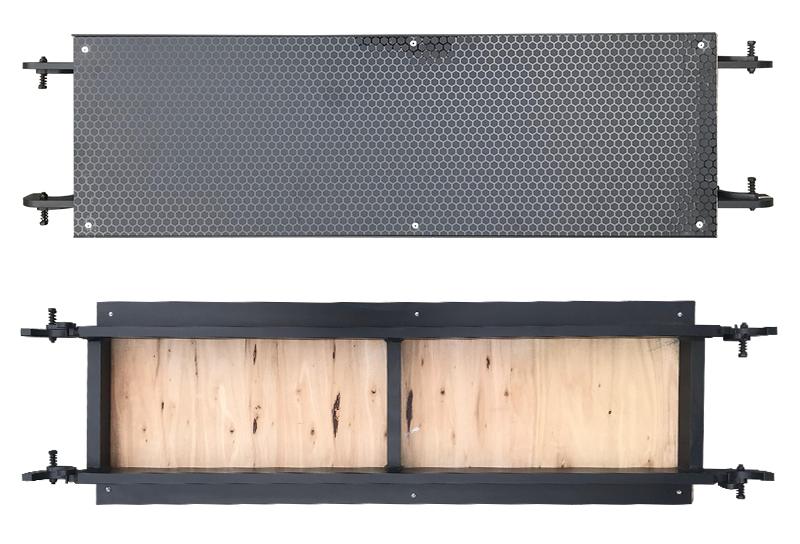

Footboard:

A stable platform is provided for standing, ensuring safety for operators working at higher place.

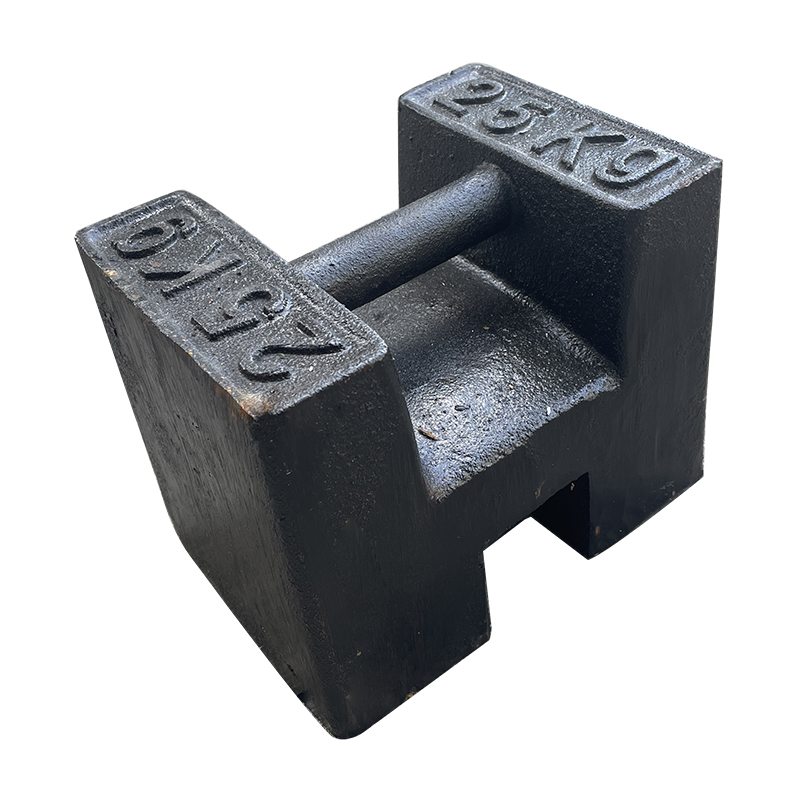

Weight:

Each weight is 25kg. It places on the adjustable base to increase the stability of the LED Wall Ground Support and ensure that it will not collapse.

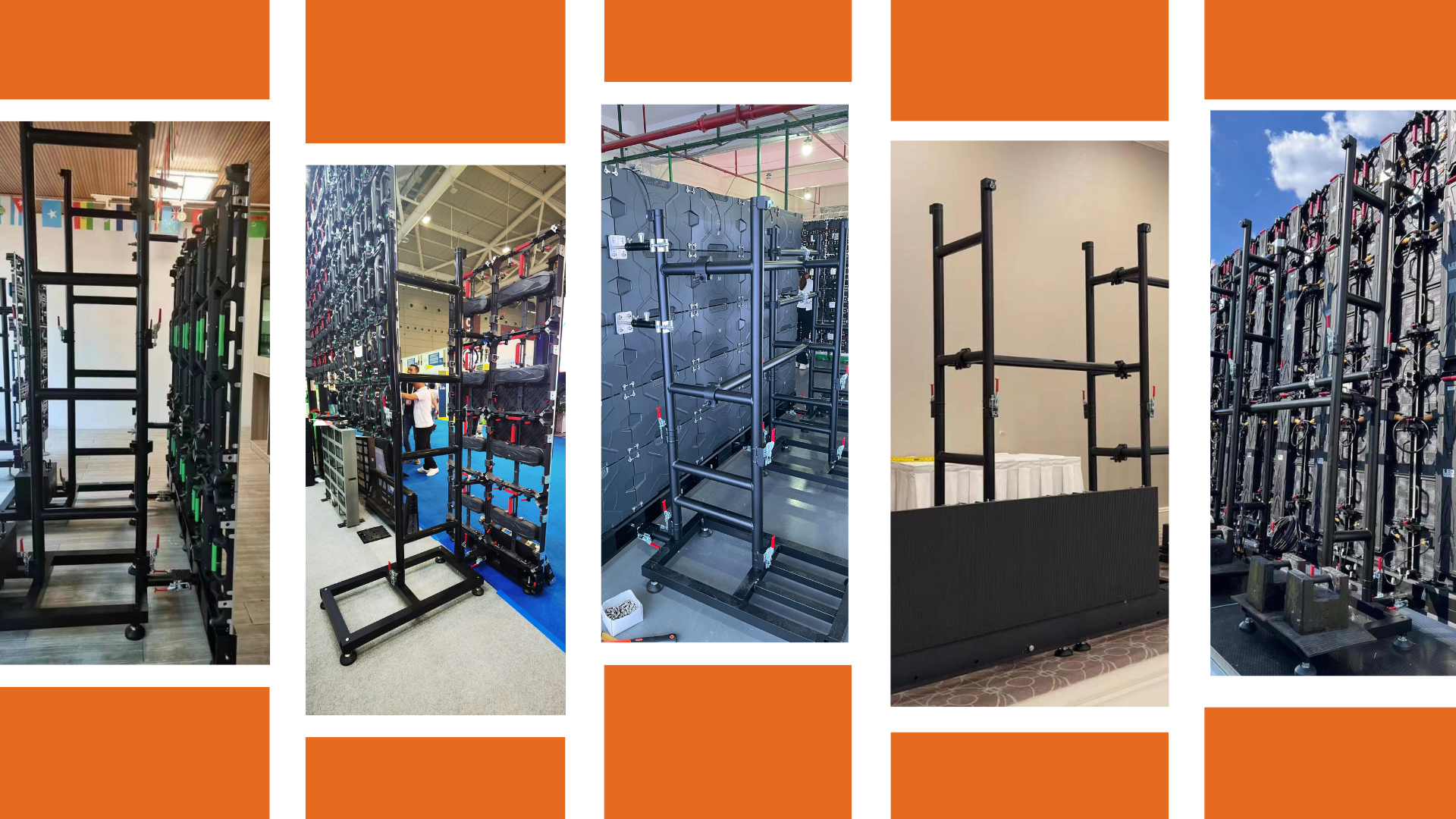

Showcase Gallery


​​​​​Contact us to customize a LED Wall Ground Support solution tailored for you.




Safety Precautions:
• Always ensure the LED Wall Ground Support is on a level surface.
• Do not exceed the weight limit specified.
• Regularly check for loose screws or components.
