8×4m Curved LED Wall Ground Support

A Curved LED Wall Ground Support is a specialized support structure designed for screen displays. This bracket system is widely used in arenas, exhibition halls, and event venues. The design allows for flexible assembly, easy adjustments, and secure mounting, accommodating various screen sizes. Its robust construction ensures reliable performance, making it an ideal choice for professional and large-scale display applications.

Quantity :

add to cart

Contact Now

Introduction:

The Curved LED Wall Ground Support is a highly adaptable solution for mounting screens. Its innovative system allows for optimal viewing angles. Designed to accommodate a variety of screen sizes, Curved LED Wall Ground Support features a modular design for easy assembly and disassembly.

•Material: Made of aluminum alloy 6061-T6.

•Color: Black

•Common Installation Sizes: 3x2m, 4x3m, 5x3m, 6x4m, etc.

•Compatible Cabinet Sizes: 500x500mm, 500x1000mm, 640x640mm, 640x480mm, and 960x960mm.

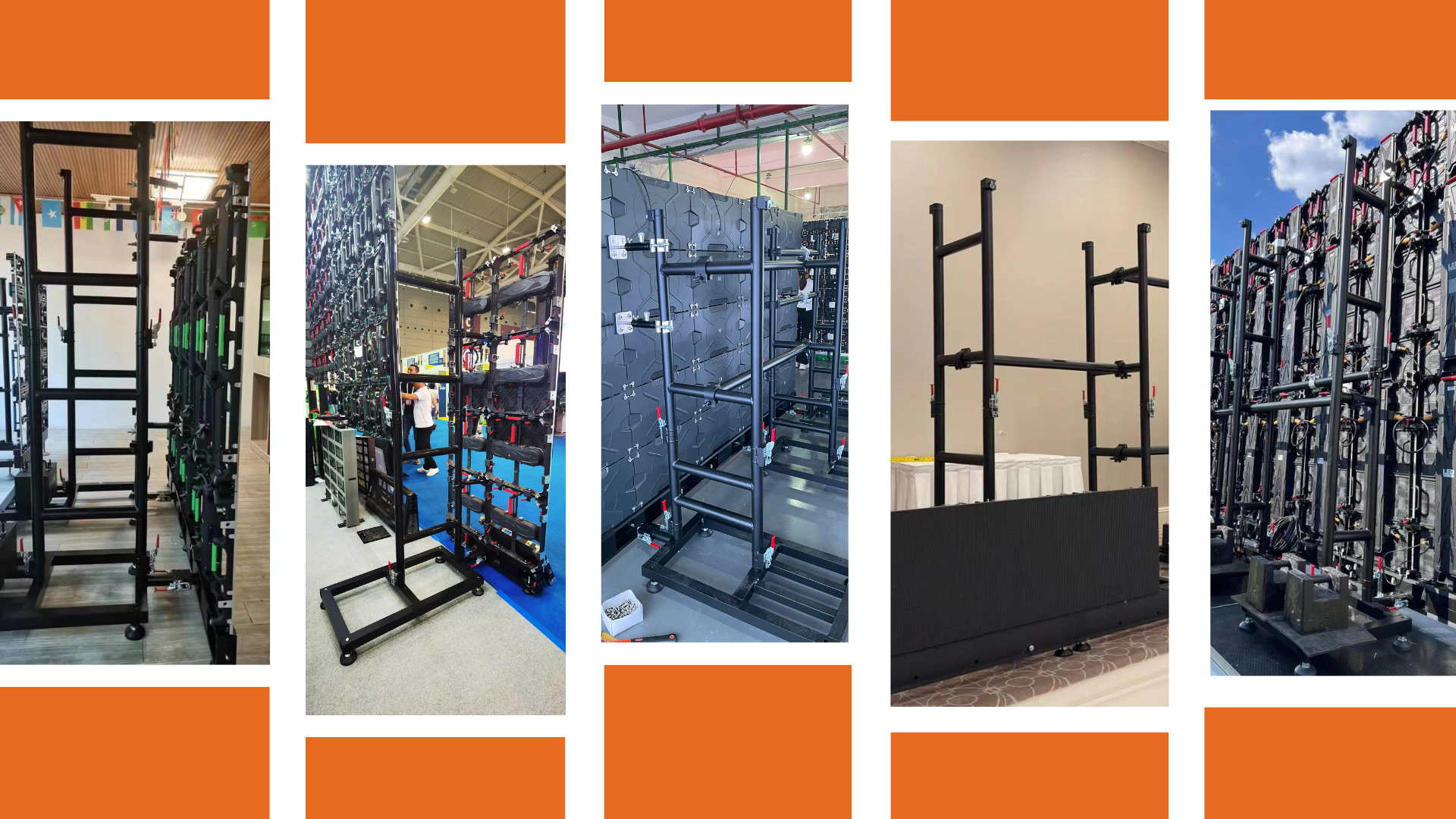

•Applications: Curved Led Wall Ground Support is ideal for conference rooms, events, concerts, exhibitions, etc.

Specifications:

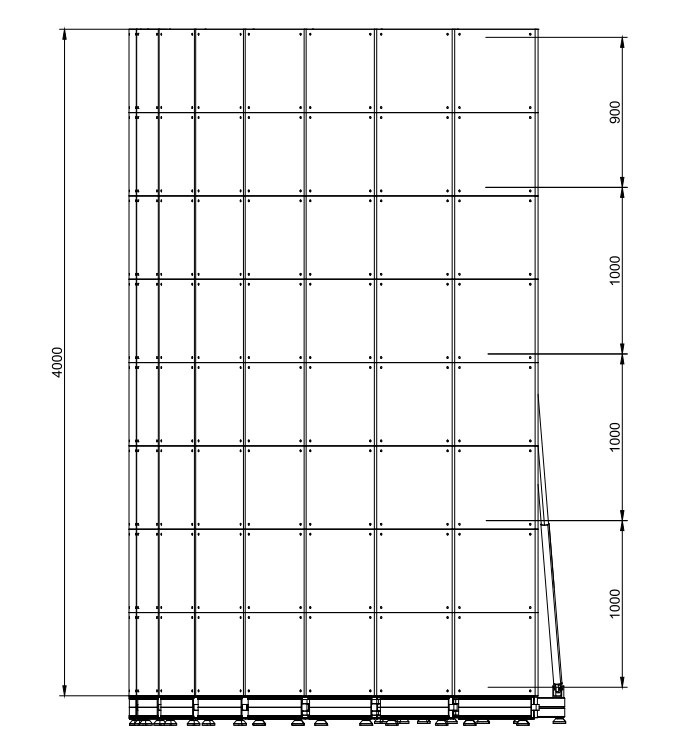

This Curved LED Wall Ground Support offers a 8-meter span and 4-meter height, designed in a straight configuration. It accommodates 500×500 mm cabinets and features a quick-lock system.

• We also offer customized Curved LED Wall Ground Support solutions in various sizes to meet unique requirements.

Components：

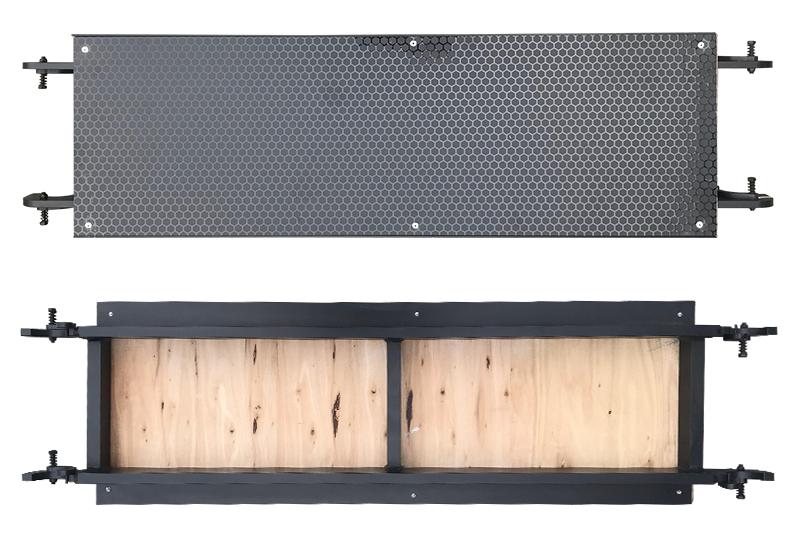

Adjustable Base：

The adjustable base enhances support and prevents Curved LED Wall Ground Support from tipping, and it is suitable for all kinds of surfaces.

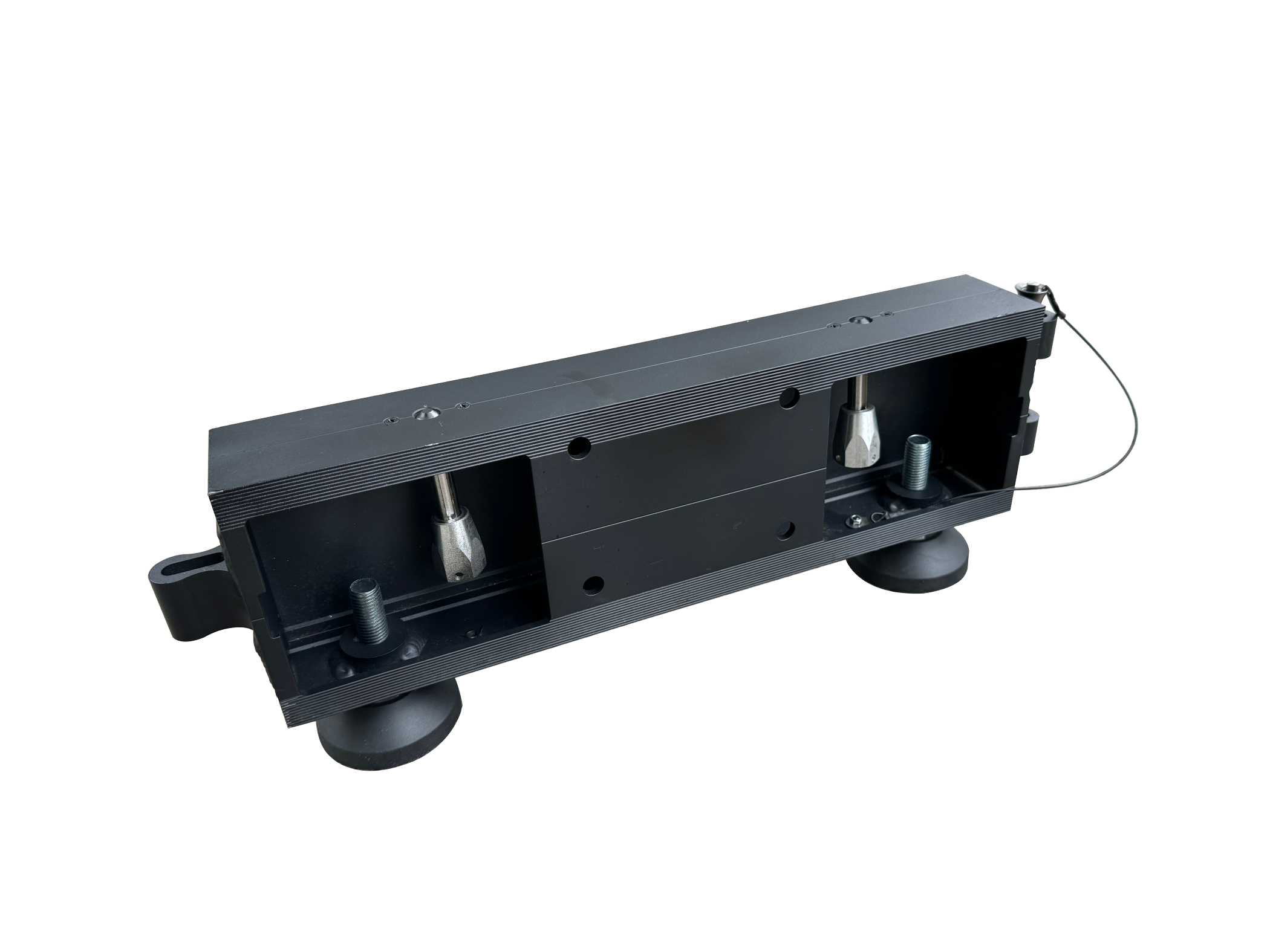

Ground Beam:

It connects to the base to ensure the whole Curved LED Wall Ground Support's stability. The pitch of hole and positioning pin locations can be customized based on the cabinets' requirements.

Ladder Truss:

It features a sturdy and durable structural design, ensuring the stability of the Curved LED Wall Ground Support.

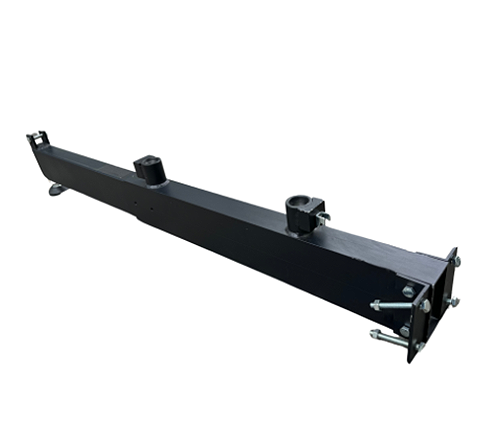

Horizontal Pipe:

It connects the ladder truss and the ground beam. The main function is to support the Curved LED Wall Ground Support, preventing it from tipping down.

Quick Lock:

The main function of it is to ensures secure locking of the Curved LED Wall Ground Support in place for safety and reliability.

Screw Lock:

It is compatible with a wide range of cabinet's types and is more affordable compared to quick lock. It is suitable for a screen angle range of -5° to +5°.

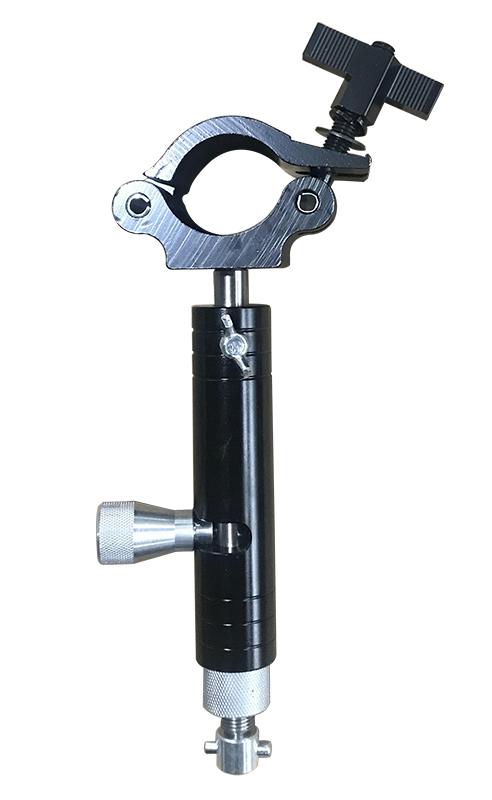

Telescopic Diagonal Brace:

It connects the ladder truss to the base, ensuring the overall strength and balance of Curved LED Wall Ground Support.

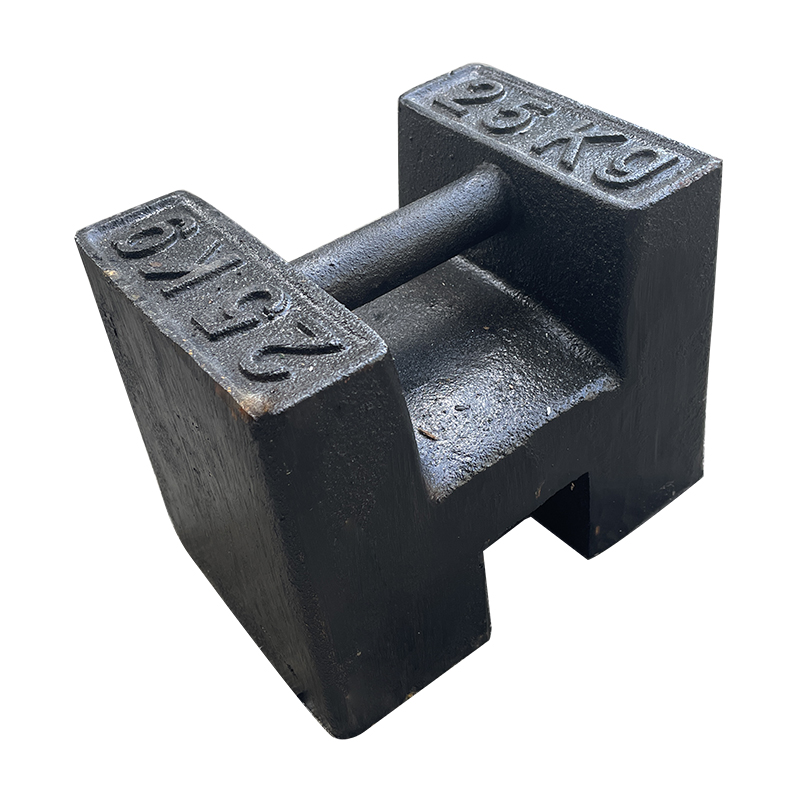

Weight:

Each weight is 25kg. It places on the adjustable base to increase the stability of the Curved LED Wall Ground Support and ensure that it will not collapse.
