17×3m Off-ground Curved LED Wall Ground Support

An Off-ground Curved LED Wall Ground Support is a specialized support structure designed for screen displays. Off-ground Curved LED Wall Ground Support's curved lifting mechanism ensures smooth height adjustments, while the sturdy frame offers excellent stability and durability. With adjustable features, it accommodates various screen sizes, making it ideal for exhibitions, events, and showing applications.

Quantity :

add to cart

Contact Now

Introduction:

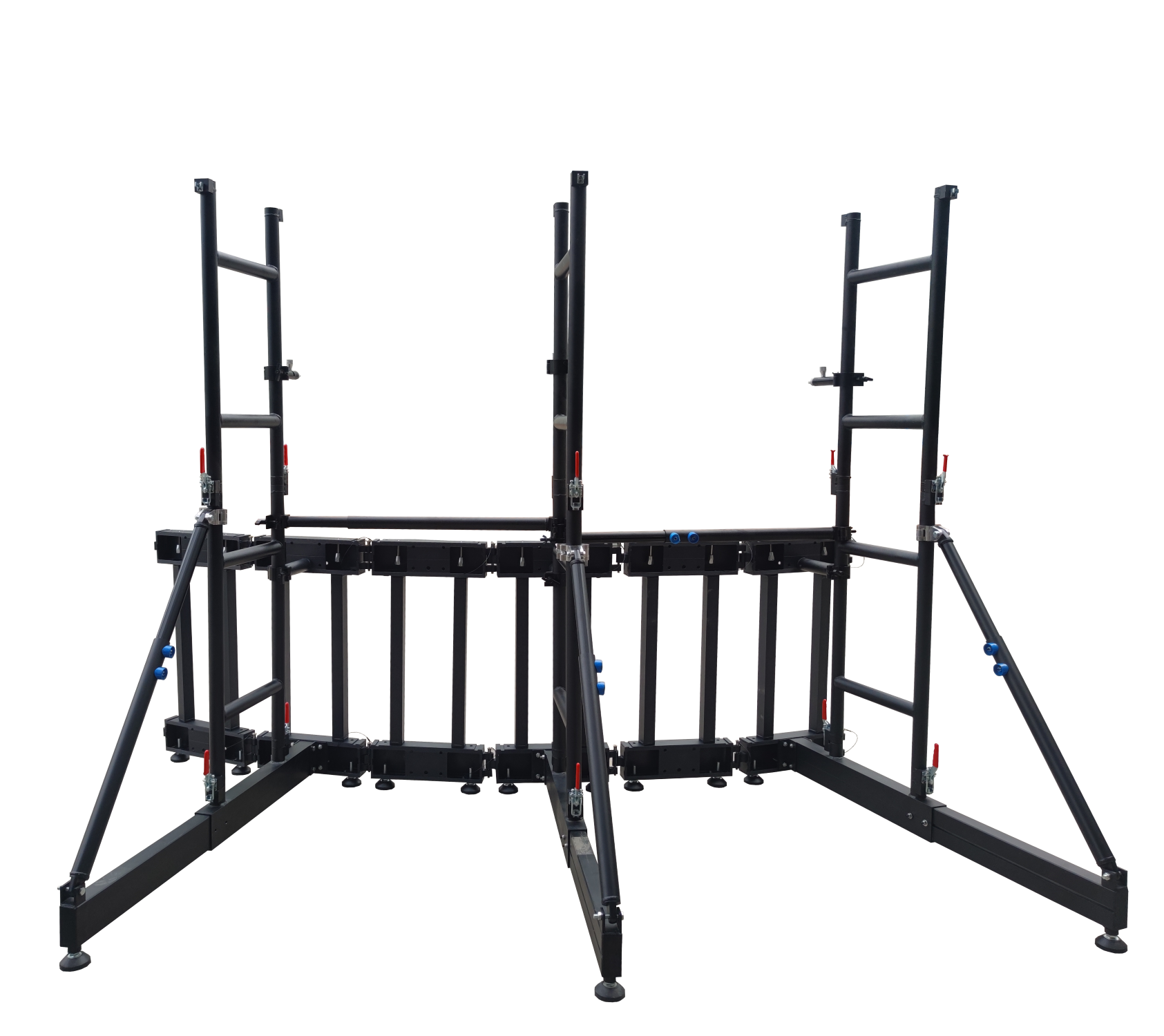

The Off-ground Curved LED Wall Ground Support is a highly adaptable solution for mounting screens. Its innovative curve-shaped lifting system allows for precise height adjustment, ensuring optimal viewing angles. Designed to accommodate a variety of screen sizes, Off-ground Curved LED Wall Ground Support features a modular design for easy assembly and disassembly.

•Material: Made of aluminum alloy 6061-T6.

•Color: Black

•Common Installation Sizes: 3x2m, 4x3m, 5x3m, 6x4m, etc.

•Compatible Cabinet Sizes: 500x500mm, 500x1000mm, 640x640mm, 640x480mm, and 960x960mm.

•Applications: Off-ground Curved Led Wall Ground Support is ideal for conference rooms, events, concerts, exhibitions, etc.

Specifications:

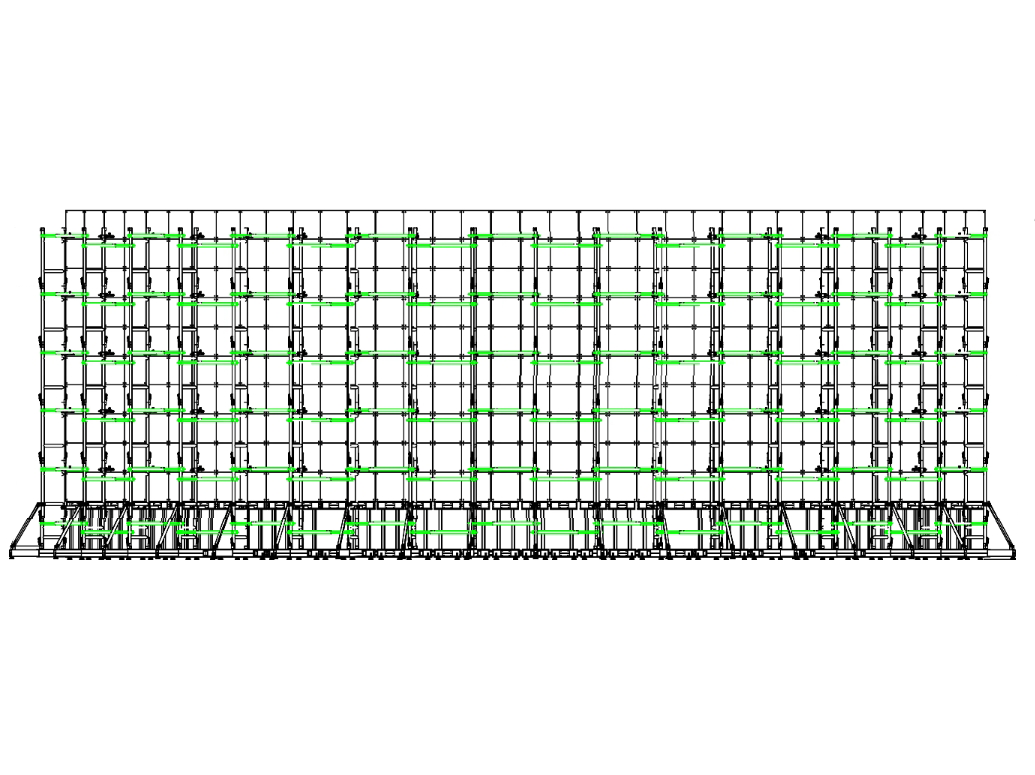

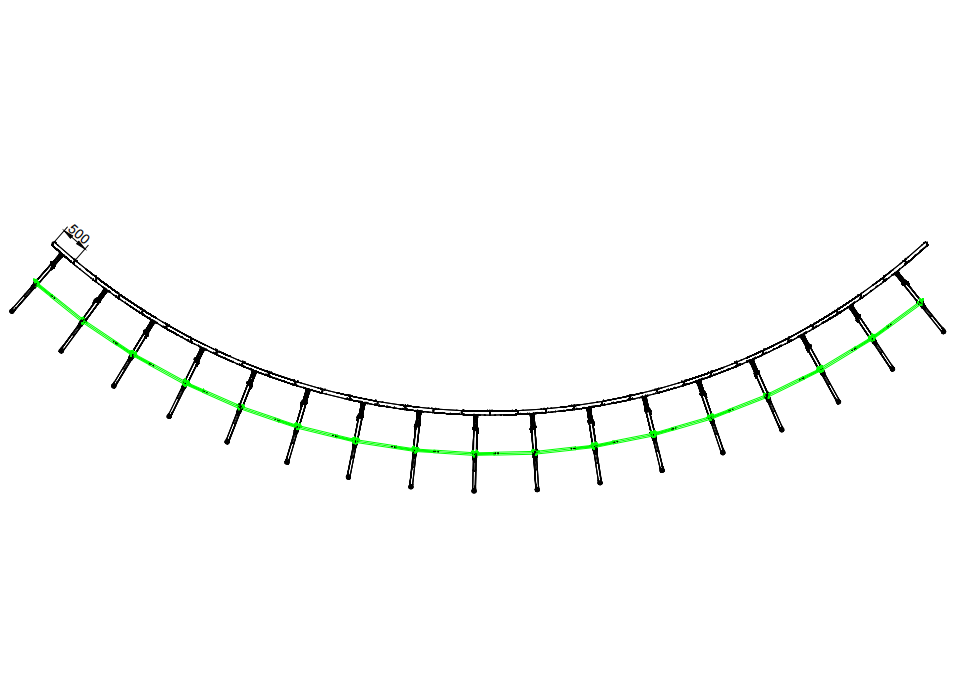

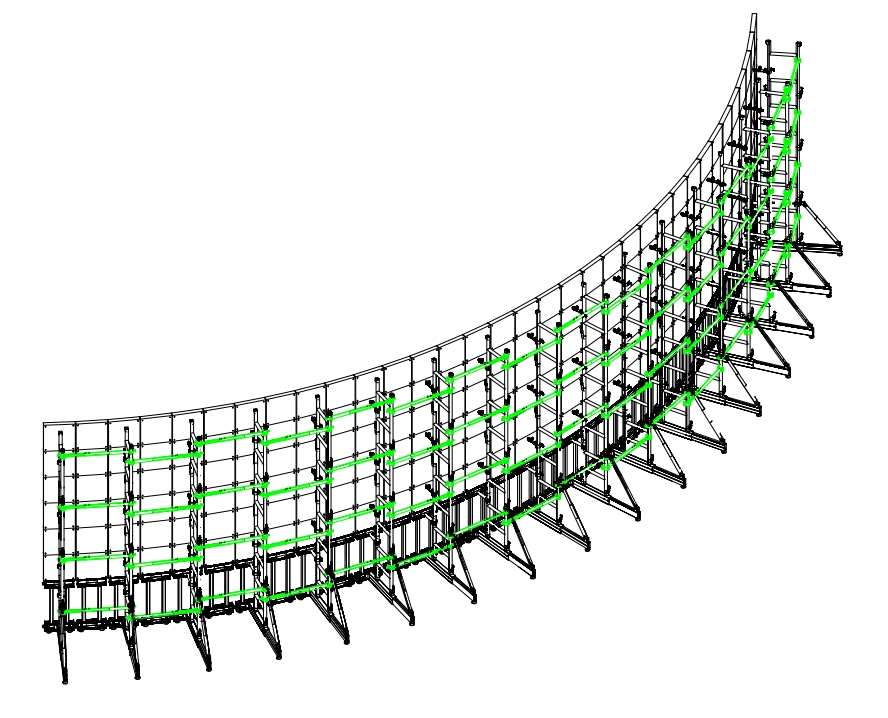

This Off-ground Curved LED Wall Ground Support offers a 17-meter span, 3-meter height and 1-meter off ground, designed in a straight configuration. It accommodates 500×500 mm cabinets and features a quick-lock system.

• We also offer customized Off-ground Curved LED Wall Ground Support solutions in various sizes to meet unique requirements.

Components：

Adjustable Base：

The adjustable base enhances support and prevents Off-groundCurved LED Wall Ground Support from tipping, and it is suitable for all kinds of surfaces.

Ground Beam:

It connects to the base to ensure the whole Off-ground Curved LED Wall Ground Support's stability. The pitch of hole and positioning pin locations can be customized based on the cabinets' requirements.

Ladder Truss:

It features a sturdy and durable structural design, ensuring the stability of the Off-ground Curved LED Wall Ground Support.

Horizontal Pipe:

It connects the ladder truss and support the Off-ground Curved LED Wall Ground Support.

Quick Lock:

The main function of it is to ensures secure locking of the Off-ground Curved LED Wall Ground Support in place for safety and reliability.

Screw Lock:

It is compatible with a wide range of cabinet's types and is more affordable compared to quick lock. It is suitable for a screen angle range of -5° to +5°.

Telescopic Diagonal Brace:

It connects the ladder truss to the base, ensuring the overall strength and balance of Off-ground Curved LED Wall Ground Support.

Ground Beam Connector:

A ground beam connector links the second level of the ground beam to ladder truss which can ensure the structural stability.

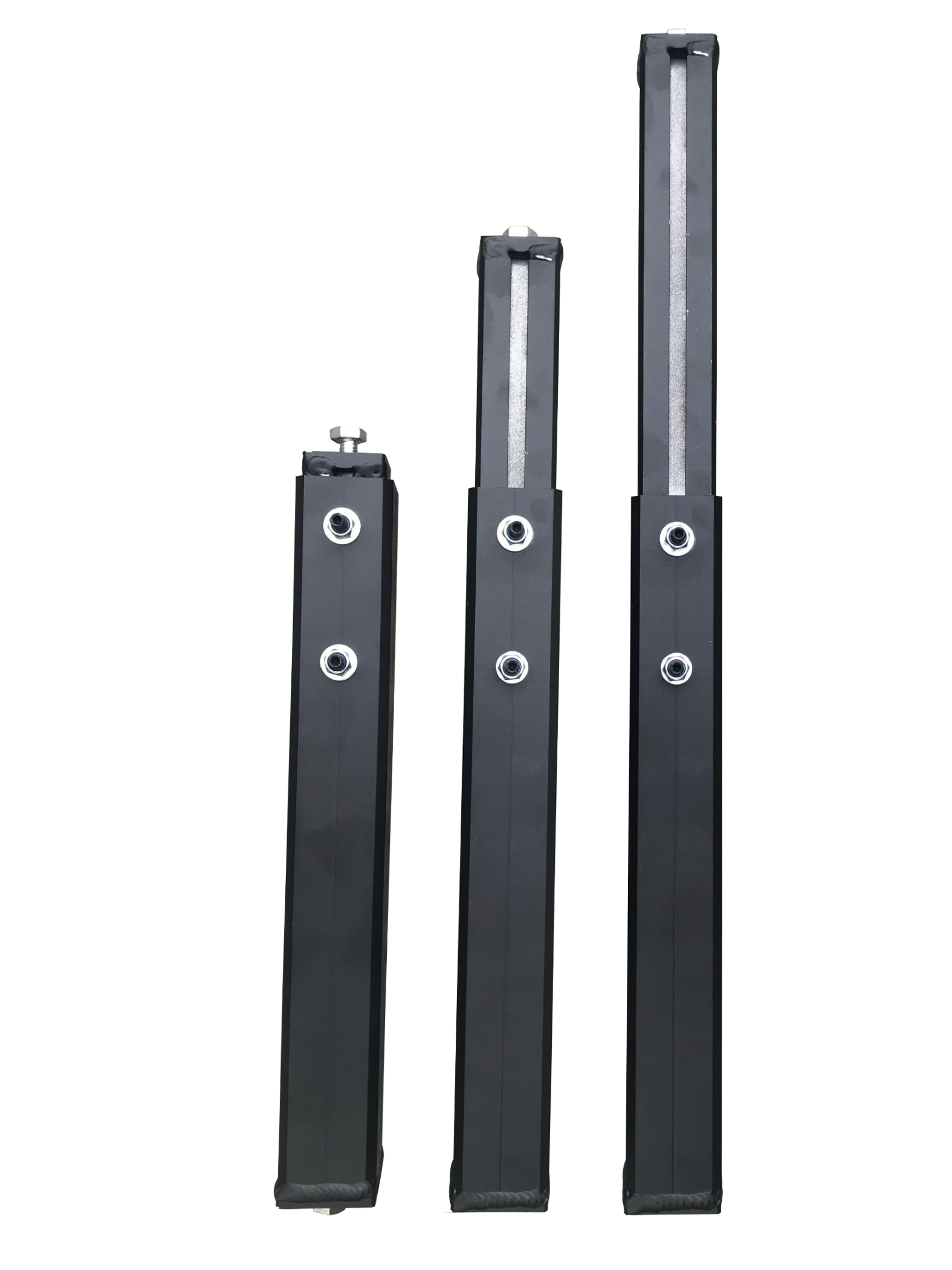

Llifting Rod:

The lifting rod of the Off-ground Curved LED Wall Ground Support ensures smooth and stable height adjustments with a robust design. It offers reliable performance, supporting substantial loads while maintaining durability.

Weight:

Each weight is 25kg. It places on the adjustable base to increase the stability of the Off-ground Curved LED Wall Ground Support and ensure that it will not collapse.
